Five models from the compact H-600 to the landmark H-1200 — every unit purpose-built for continuous commercial hospitality. Manufactured in Mississauga, Ontario — supplied and commissioned across Canada and the United States.
Also Available
Our most compact commercial model — ideal for facilities with space constraints or lower bather capacity requirements. The H-600 delivers full commercial-grade performance in a space-efficient 78" square footprint.
The most popular model in our lineup. The H-800 strikes the perfect balance between capacity and footprint, making it the go-to choice for hotel amenity floors and residential condo pools.
A rectangular format design that seats up to 10 bathers comfortably. The H-1000 is engineered for high-traffic hotel amenity spaces and premium residential developments.

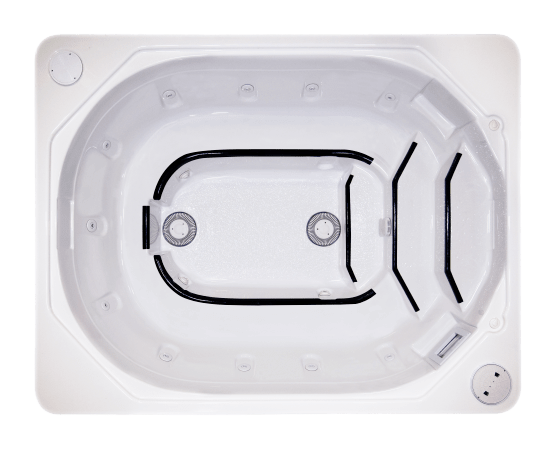

The H-1100 is our large-format square model designed for premium hospitality venues where the spa is a signature amenity. Accommodates 10-11 bathers with full therapeutic coverage.

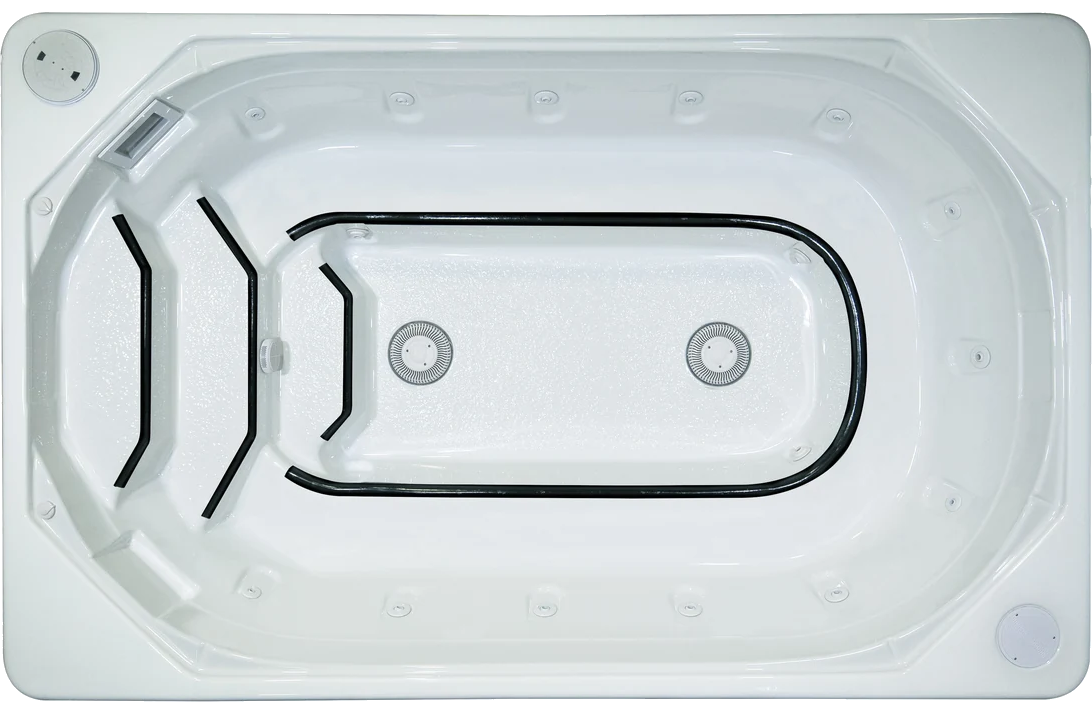

The largest model in the HydroTher commercial lineup. The H-1200 is designed for flagship installations where no compromise is acceptable — a centrepiece amenity for the world's finest properties.
Every spec, every model — choose the right fit for your property.
| Specification | H-600 | H-800 ★ | H-1000 | H-1100 | H-1200 |
|---|---|---|---|---|---|
| Capacity | 5–6 persons | 7–8 persons | 10 persons | 9–11 persons | 10–12 persons |
| Dimensions | 78″ × 78″ × 38″ | 96″ × 96″ × 42.5″ | 90″ × 108″ × 48.5″ | 120″ × 92″ × 42.5″ | 144″ × 92″ × 42.5″ |
| Volume | 375 US gal | 450 US gal | 575 US gal | 650 US gal | 840 US gal |
| Hydro Jets | 5 jets | 8 jets | 8 jets | 11 jets (7L+4M) | 13 jets (9L+4M) |
| Jet Pump | 0.75 hp + 0.5 hp circ. | 1.5 hp + 0.5 hp circ. | 2 × 1.5 hp + 0.5 hp | 2 × 1.5 hp + 0.75 hp | 2 × 2 hp + 0.75 hp |
| Heater | 11 kW Coates | 11 kW Coates | 12 kW Coates | 15 kW Coates | 15 kW Coates |
| Empty Weight | 680 lbs | 900 lbs | 1,080 lbs | 950 lbs | 1,050 lbs |
| Best For | Compact spaces | Hotels & condos | High-traffic amenity | Premium venues | Flagship properties |
| Configure | Configure → | Configure → | Configure → | Configure → | Configure → |
★ Most popular model | All models manufactured in Canada by HydroTher
All Models Include
Mechanical Support Systems
Each mechanical pack arrives factory-plumbed, water-tested, fully labeled, and mounted on a waterproof plastic base — built exclusively with Hayward Pool Products components.
| Model | Series | Voltage / Phase | Circ. Pump | Jet Pump | Filter | Heater |
|---|---|---|---|---|---|---|
| H-600 Series | ||||||
| HCSP1-240 | H-600 | 240V, 1-phase | ½ hp | ¾ hp | 100 sq.ft | 11 kW |
| HCSP1-208 | H-600 | 208–230/460V, 3-phase | ½ hp | ¾ hp | 100 sq.ft | 12 kW |
| HCSP1-575 | H-600 | 575V, 3-phase | ½ hp | ¾ hp | 100 sq.ft | 12 kW |
| H-800 Series | ||||||
| HCSP2-240 | H-800 | 240V, 1-phase | ½ hp | 1.5 hp | 150 sq.ft | 11 kW |
| HCSP2-280 | H-800 | 208–230/460V, 3-phase | ½ hp | 1.5 hp | 150 sq.ft | 12 kW |
| HCSP2-575 | H-800 | 575V, 3-phase | ½ hp | 1.5 hp | 150 sq.ft | 12 kW |
| H-1000 Series | ||||||
| HCSP3-240 | H-1000 | 240V, 1-phase | ¾ hp | 1.5 hp | 150 sq.ft | 11 kW |
| HCSP3-208 | H-1000 | 208–230/460V, 3-phase | ¾ hp | 1.5 hp | 150 sq.ft | 12 kW |
| HCSP3-575 | H-1000 | 575V, 3-phase | ¾ hp | 1.5 hp | 150 sq.ft | 12 kW |
| H-1100 & H-1200 Series | ||||||
| HCSP4-240 | H-1100 / H-1200 | 240V, 1-phase | ¾ hp | 2 hp | 200 sq.ft | 15 kW |
| HCSP4-208 | H-1100 / H-1200 | 208–230/460V, 3-phase | ¾ hp | 2 hp | 200 sq.ft | 15 kW |
| HCSP4-575 | H-1100 / H-1200 | 575V, 3-phase | ¾ hp | 2 hp | 200 sq.ft | 15 kW |
Maximum hydraulic efficiency and superior flow. Self-priming with suction lift up to 10 feet. 2″ × 2.5″ union connections.
Cartridge filtration — no backwashing required. Easy-Lok ring for quick maintenance. Reduces operational energy costs.
Established commercial heater manufacturer since the 1940s. Reliable water heating across all pack configurations.
EVERY MODEL INCLUDES
Industry-standard touchpad and digital display with full temperature and jet control.
Fast heat recovery, corrosion-free titanium element built for continuous commercial use.
Energy-efficient 2.5 HP circulation pump with quiet variable-speed operation.
Color-changing LED strip around the full interior perimeter for ambience and safety.
Anti-entrapment drain covers on all models, fully compliant with VGB Act requirements.
Precision ±0.5°C temperature accuracy with digital readout on the Balboa panel.
Insulated thermal cover with child-safety key locks. Reduces heat loss by up to 70%.
Ground-fault circuit interrupter protection on all electrical components, code-compliant.
Factory-installed CD ozone generator reduces chlorine demand by up to 60%.
316L stainless steel jet faces and bodies — corrosion-proof for heavy commercial use.
High-density foam insulation throughout the cabinet, R-20 equivalent for year-round efficiency.
Parts and labour warranty backed by HydroTher directly. No third-party warranty company.
Included with every commercial order. Our team handles delivery and full commissioning.
CUSTOMIZE YOUR MODEL
Upgrade to 24, 36, or 48 adjustable therapy jets for high-volume commercial use.
4 HP twin-pump upgrade for sports therapy and high-demand fitness applications.
Full-body bubble massage system with independent blower control and variable intensity.
Low-chlorine saltwater sanitation upgrade for premium resort and wellness applications.
Active cooling for cold-water therapy and contrast bath applications. Popular in sports facilities.
Pneumatic cover lifter for effortless access. Essential for high-traffic commercial operations.
ADA-compliant stainless steel entry handrails for accessibility compliance.
5-year comprehensive parts & labour warranty for maximum long-term peace of mind.
SPECIFICATIONS
| Model | Capacity | Jets | Pump | Heater | Volume |
|---|---|---|---|---|---|
| H-600C Compact | 4–6 persons | 12 | 2.5 HP | 6 kW | 1,100 L |
| H-600C Standard | 6–8 persons | 18 | 2.5 HP | 9 kW | 1,400 L |
| H-750C Compact | 6–8 persons | 18 | 2.5 HP | 9 kW | 1,600 L |
| H-750C Standard | 8–10 persons | 24 | 4 HP | 12 kW | 1,900 L |
| H-750C Therapy | 6–8 persons | 36 | 4 HP twin | 12 kW | 1,700 L |
| H-900C Standard | 8–12 persons | 24 | 4 HP | 12 kW | 2,200 L |
| H-900C Therapy | 10–12 persons | 36 | 4 HP twin | 15 kW | 2,400 L |
| H-900C Sport | 10–14 persons | 48 | 4 HP twin | 15 kW | 2,600 L |
| H-1000C Standard | 10–14 persons | 30 | 4 HP | 15 kW | 2,800 L |
| H-1000C Therapy | 12–16 persons | 48 | 4 HP twin | 18 kW | 3,000 L |
| H-1200C Standard | 14–18 persons | 36 | 4 HP | 18 kW | 3,500 L |
| H-1200C Therapy | 16–20 persons | 48 | 5 HP twin | 18 kW | 3,800 L |
| H-1200C Sport | 18–24 persons | 48 | 5 HP twin | 18 kW | 4,200 L |
| H-1200C Elite | 20–26 persons | 48+ | Dual 5 HP | 18 kW | 4,800 L |
